MPO to 4XLC Fiber Breakout Cables: Key Considerations for Installation and Use

In the world of high-speed data networks, the efficiency and reliability of fiber optic cabling play a crucial role in maintaining seamless connectivity. One of the most versatile solutions for high-density fiber management is the MPO to 4XLC fiber breakout cable. These cables are designed to split a single multi-fiber MPO connection into multiple individual LCs, providing an effective solution for data centers, enterprise networks, and high-bandwidth applications.

Fiber-MART offers a wide range of MPO to 4XLC fiber breakout cables, ensuring quality, performance, and compliance with industry standards. However, installing and using these cables requires careful consideration to maximize their performance and lifespan.

Understanding MPO to 4XLC Fiber Breakout Cables

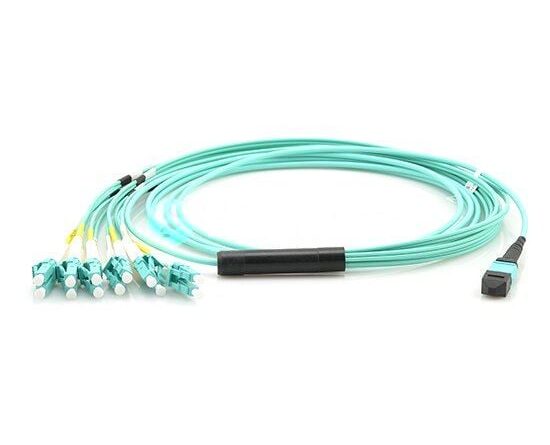

An MPO to 4XLC fiber breakout cable is a type of fiber optic assembly that converts an MPO/MTP connector at one end into four LC connectors at the other end. MPO (Multi-Fiber Push On) connectors are widely used in high-density applications due to their ability to accommodate multiple fibers in a single interface. LCs, on the other hand, are smaller form-factor connectors that are easy to handle and terminate.

The breakout design allows network engineers to connect high-density backbone cabling to standard LC-based equipment ports efficiently. This makes MPO to 4XLC fiber breakout cables ideal for applications such as 40G and 100G Ethernet, data center interconnects, and high-performance computing networks.

Key Considerations for Installation

When deploying MPO to 4XLC fiber breakout cables, several factors must be considered to ensure optimal performance.

Cable Type and Fiber Count

Fiber-MART provides MPO to 4XLC fiber breakout cables in various configurations, including single-mode and multimode options. Choosing the correct fiber type depends on the network application:

• Single-mode cables are suitable for long-distance transmissions, typically over 10 kilometers.
• Multimode cables are ideal for short-range applications within data centers, supporting speeds up to 100G over 100 meters.

Additionally, the fiber count in the MPO connector should match the number of breakout LC connectors required. A typical MPO connector contains 12, 24, or 48 fibers, allowing for multiple breakout options.

Polarity and Fiber Mapping

Polarity is critical when installing MPO to 4XLC fiber breakout cables. Incorrect polarity can lead to network failures or signal loss. The standard method for mapping fibers from the MPO end to the LC end should be followed carefully. Fiber-MART cables typically follow the TIA-568 or EIA/TIA-604 standards, ensuring proper connectivity across all fibers.

Proper labeling of fibers is also essential to prevent errors during installation. Many MPO to 4XLC fiber breakout cables from Fiber-MART come with pre-labeled connectors and color-coded fan-out bundles for easy identification.

Cable Management and Routing

Proper cable management is vital for maintaining performance and reducing potential damage. MPO to 4XLC fiber breakout cables have a fan-out design at the LC end, which increases the physical footprint of the cable. Network engineers must ensure adequate space in patch panels and racks to accommodate this design without bending or stressing the fibers.

Fiber bend radius is another important consideration. Exceeding the minimum bend radius can result in signal loss or permanent damage to the fibers. Fiber-MART specifies bend radius requirements for all their MPO to 4XLC fiber breakout cables, helping installers maintain network integrity.

Environmental Factors

The operating environment can impact the performance of MPO to 4XLC fiber breakout cables. Temperature, humidity, and exposure to dust or chemicals should be considered during installation. Fiber-MART cables are designed to withstand a wide range of environmental conditions, but additional protective measures, such as conduit or cable trays, may be necessary in harsh environments.

Testing and Certification

After installation, testing is crucial to verify the performance of the MPO to 4XLC fiber breakout cable. Optical time-domain reflectometer (OTDR) and insertion loss testing are commonly used to ensure that all fibers meet performance specifications. Fiber-MART provides pre-tested cables with certified performance data, simplifying the verification process for network engineers.

Benefits of MPO to 4XLC Fiber Breakout Cables

Deploying MPO to 4XLC fiber breakout cables in a network offers several advantages:

• High-density connectivity: These cables allow multiple connections from a single MPO interface, saving valuable rack space in data centers.
• Ease of installation: Pre-terminated cables from Fiber-MART reduce installation time and complexity.
• Scalability: Networks can be easily upgraded by adding additional breakout cables without overhauling existing infrastructure.
• Reduced signal loss: Properly installed breakout cables minimize insertion loss, ensuring high-quality transmission over both short and long distances.

Best Practices for Use

To maximize the performance and lifespan of MPO to 4XLC fiber breakout cables, following best practices is essential:

1. Use compatible equipment: Ensure that the MPO and LC ports on your equipment match the fiber type and connector type of the breakout cable.
2. Avoid excessive pulling or bending: Always respect the minimum bend radius and avoid sharp turns or tension on the cable.
3. Maintain cleanliness: Fiber connections are sensitive to dust and debris. Use cleaning kits to clean MPO and LC connectors before installation.
4. Label and document: Clearly label each end of the cable and maintain a record of connections to simplify future maintenance.
5. Regular inspection: Periodically inspect cables for signs of wear or damage, especially in high-traffic areas.

Choosing Fiber-MART for MPO to 4XLC Fiber Breakout Cables

Fiber-MART is a trusted provider of high-quality fiber optic solutions, including MPO to 4XLC fiber breakout cables. Their products are engineered to meet industry standards and are backed by rigorous testing to ensure performance and reliability. Choosing Fiber-MART ensures that network installations are efficient, scalable, and capable of supporting current and future high-speed data requirements.

Their cables come with various customization options, including length, fiber type, connector polarity, and jacket material, allowing network engineers to select the most suitable solution for their specific environment.

Conclusion

The MPO to 4XLC fiber breakout cable is an essential component in modern high-density network deployments. Proper selection, installation, and maintenance are critical to achieving optimal performance and longevity. By considering factors such as fiber type, polarity, cable management, and environmental conditions, network engineers can ensure that their infrastructure remains robust and efficient.

With Fiber-MART’s wide range of MPO to 4XLC fiber breakout cables, organizations can enjoy reliable connectivity, simplified installation, and the flexibility to scale their networks as demands grow. Investing in high-quality breakout cables and following best practices not only improves network performance but also reduces operational risks and long-term maintenance costs.
